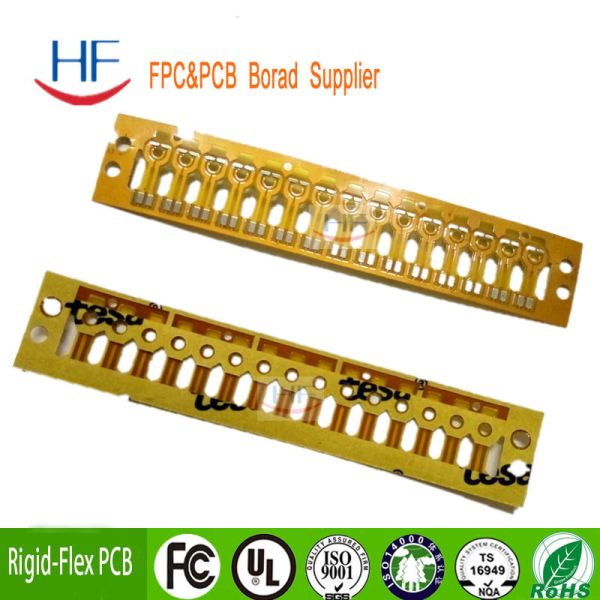

2.5mm FPC PCB Design And Development Flex Circuit Assemblies

Brand Name : HF

Model Number : design PCB

Certification : ISO CE

Place of Origin : China

MOQ : 5PCS

Price : Negotiable

Payment Terms : L/C, T/T,PAYPAL

Supply Ability : Ten thousand square meters per month

Delivery Time : 5~8 days

Packaging Details : Vacuum packing, high quality carton

Base Material : FR-4 ,Rogers , Aluminum ,Hight TG

Number of plies : 2-4-6-8-10-12-16-20-22-28 Layer

Board Thickness : 0.4-4.0mm

Copper Thickness : 1-6oz

solder Color : green,Red,Black,Yellow,White,Blue

silkscreen color : white,black,yellow

surface Finishing : HASL(lead Free) / Immersion Gold /osp / Immersion tin/Immersion silver

Min. Hole Size : 3mil

Service : OEM Services Provided,PCB/Components Sourcing/Soldering/Programming/Testing..,One-stop Turnkey Service,One Stop Turnkey service,PCBA

Material : FR4 ,Rogers , Aluminum ,High TG,CEM1, CEM3, Halogen Free

Layer Coun : 1-40

Solder Mask color : green, yellow,white, blue,black,red

Surface Finishing : HASL(lead Free) / Immersion Gold(ENIG) /OSP/ Immersion Tin/Immersion Silver

Test : 100% AOI, X-ray, Flying probe test.

Contact Now

PCB print circuit board Multilayer PCB Board Wireless charging display

Applications
Communications
Traditional telecommunication equipment, FTTP, VOIP, multimedia services, data networking and IT infrastructure products, wireless infrastructure products, power amplifiers, splitters and combiners, high power transistors, etc.
Computer Peripherals
High end printers, cable modem, wireless routers, IP telephones, consumer and office products, banking system etc.
Consumer
Computers, televisions, cameras, digital video recorders (DVR), handheld products, LED, etc.
Automotive
Passenger safety systems, engine control systems, air bags, traction control products, etc.
High End Computing and Storage
High performance computer and server, mainframe system and storage equipment, memory, etc.
Industry
Power supply, main control panel, monitor, CCTV products,automotive control equipment, industry robot, access control products etc
Medical
Magnetic resonance imaging (MRI), computed tomography (CT), emergency response defibrillation units, patient monitoring, implantable devices, robotic surgery systems,
biometrics and diagnostic equipment, etc.
Military
Satellite, radar, airplane, control unit, communication equipment .etc.
Test & Measurement
Power meters, electricity tester, thermal tester, light tester, network tester, gas and oil tester, infrared products, semi-conductor test equipment, DUT and probe cards, wafer inspection systems, etc.

Capability

category	project	Description
Base Material	fr-4 ,PTFE ,Polyimide	Ordinary Tg, medium Tg, high Tg, halogen free, Low Dk, Low loss, high CTI, PTFE
LAYER	Rigid PCB	1-32LAYER

	fpc PCB	0-10LAYER
	Rigid -Flexible PCB	2-18LAYER
Board Thickness	Rigid PCB	0.4-6.0MM
	fpc PCB	0.05-0.36MM
	Rigid -Flexible PCB	0.4-6.0MM
Copper Thickness	inner layer	0.5-8.0 OZ
Copper Thickness	outer layer	0.5-8.0 OZ
Surface Finishing	Hasl	0.3-1.0um
	Immersion Gold	0.025-0.1um
	OSP	0.2-0.6um
	Immersion tin	0.8-1.2um
Solder mask color	outer layer	Green,black,white,blue,yellow,red
Character color	outer layer	white ,black, yellow
Min. Line Width	inner layer	0.05/0.05MM
Min. Line Width	outer layer	0.05/0.05MM
Min. Line Spacing	inner layer	0.05/0.05MM
Min. Line Spacing	outer layer	0.05/0.05MM
Drill Hole	Max Diling dameter	6.5MM
	Min Diling Diameter	0.1mm
	MinSlot	0.60MM
	Drilig tolerance	PTH:+/-0.075mm NPTH:+/-0.05mm
	Slot tolerance	PTH:+/-0.10mm NPTH:+/-0.05mm
Board Size	Rigid PCB	800*2000MM
	fpc PCB	200*800MM
	Rigid -Flexible PCB	200*500MM
Drill Aspect Ratio	Mechanical hole	12.0:1.0
Drill Aspect Ratio	blind hole	1.0:1.0
Solder mask bridge	green oil	0.08MM
	white,blue,yellow,red	0.1MM
	black oil	0.12MM
Bow and Twist	Rigid PCB	0.5-0.75%
core thickness	Rigid PCB	0.075MM (excluding copper)
Resin plug hole	hole size	0.2-0.35mm
Carbon oil	thickness	10um(min)
V - cut	Rigid PCB	30 45 60 (Tolerance: + / - 5 degrees)
impedance	50-120 ohm	Tolerance: + / - 10 %
PP type	Commonly used	1080,2116,7628 ,106

Advantages
1. PCB factory directly
2. Comprehensive quality control system
3. Competitive price
4. Quick turn delivery time from 24hours.
5. Certificates (ISO/UL E354810/RoHS)
6.10 years experience in exporting service
7. No MOQ/MOV.
8. High quality. Strict through the AOI(Automated Optical Inspection), QA/QC, flying porbe ,Etesting, etc
